How to configure a Mirror Group using MAWi

How to configure a Mirror Group using MAWi

Here is how to set up the screens in a Mirror Group layout:

Make sure the “Scale and Layout” is set to 100% inside Windows Display Settings:



  • Right click on the desktop and select Display settings
  • Select the first screen and make sure it’s set to 100% in the “Scale and Layout” section.
  • Preform the same procedure for all the screens connected to your PC.

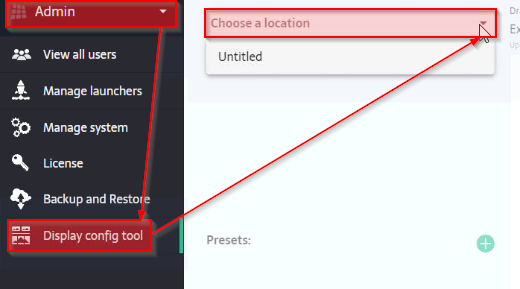

Inside MAWi´s Dashboard open Admin Panel - Display Config Tool - Location

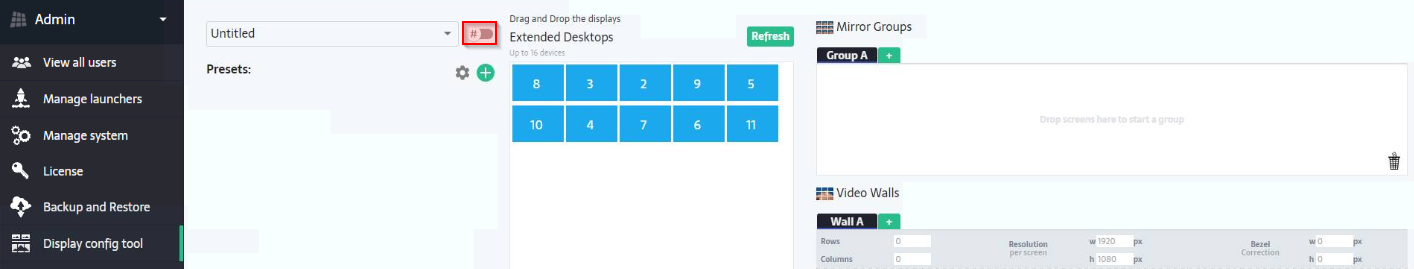

Click on ‘Identify screens’ to locate your screens and select which displays
will be part of the same mirror group.

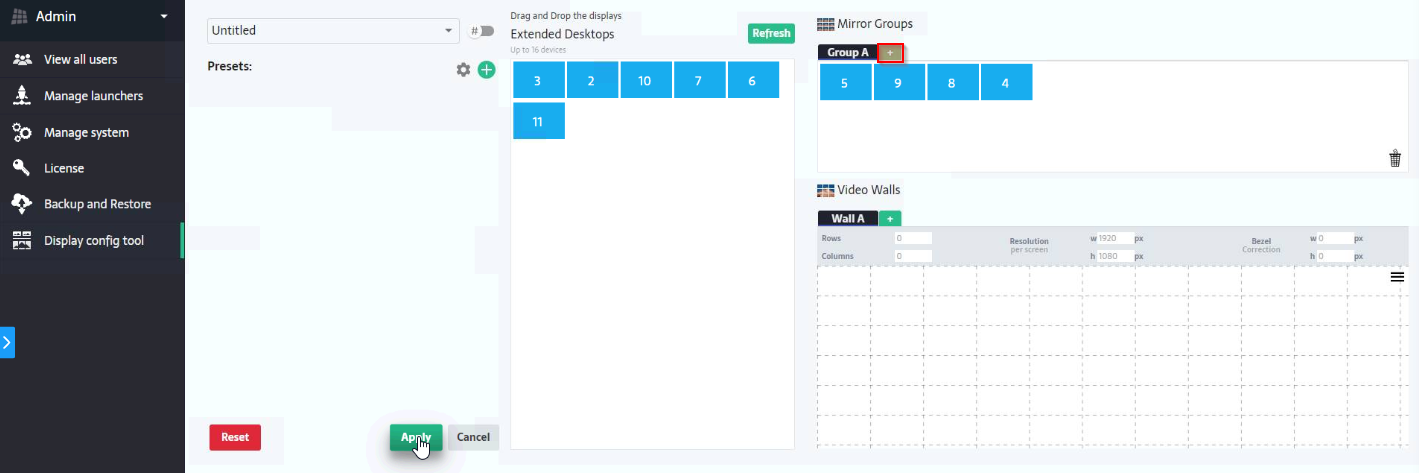

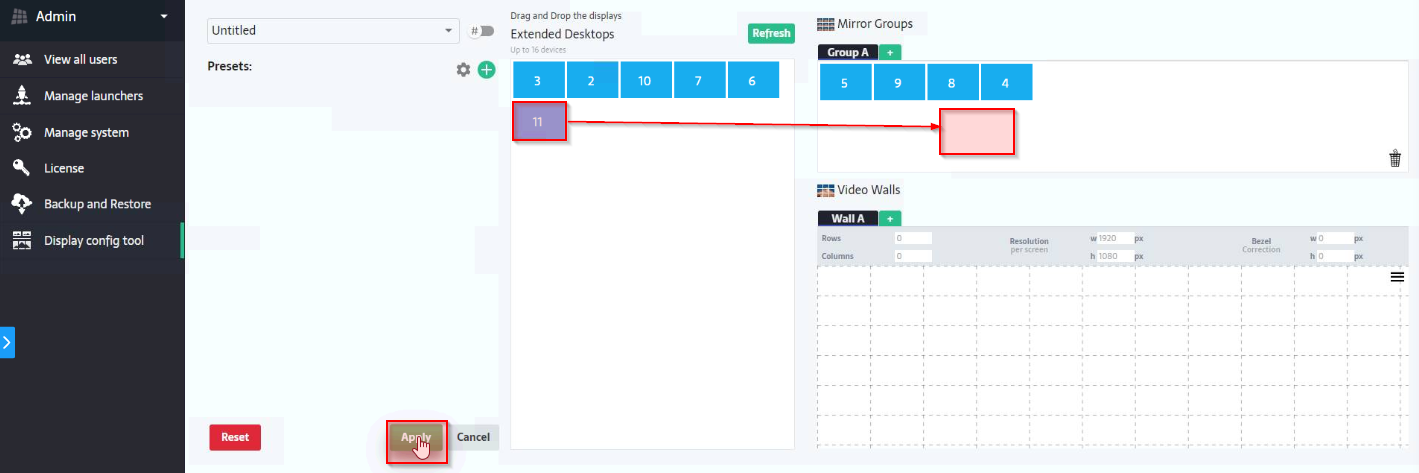

Drag-and-drop the screens to the Mirror Groups Area to set up your Mirror Group,
once the group contains all the screens that are part of the same group click "Apply"


You can create multiple Mirror Groups by clicking the green "+" next to Group A, the following
group will be named Group B..C and so on.
