MAWi Player v2 Setup and Installation Guide for the Online Monitors AnyWhere System

How to set the MAWi Player v2 to work with the Online Monitors AnyWhere

Setting up the MAWi Player v2


1. Connecting the device

Connect the MAWi Player v2 device to the screen with the HDMI cable provided.

Connect the device to the network either with a wired ethernet cable or over wifi.

Plug the power adapter into the mains and to the device and make sure the device boots up.


Recommended option:

Connect a mouse to the USB port of the MAWi Player v2. It will help you with the initial setup steps.



2. Network connection



Once the MAWi Player is connected to the network and a DHCP server is available, it will be automatically assigned an IP address.


To assign it with a static IP address go to the Settings of the Android Device > Network & Internet > Ethernet > IP Settings > Static.

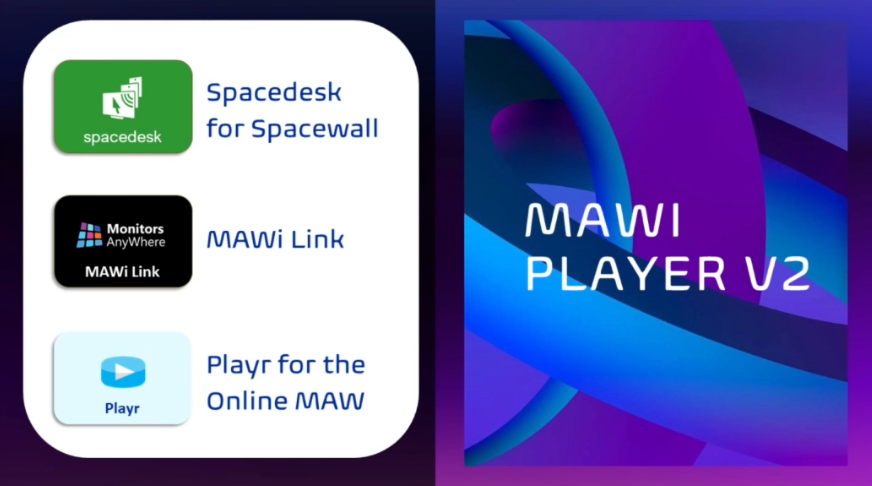

3. After completing the initial setup steps, in the main menu, select Playr for the Online MAW:






If you've selected another option by mistake, please perform a factory reset by following the process outlined in the link below:

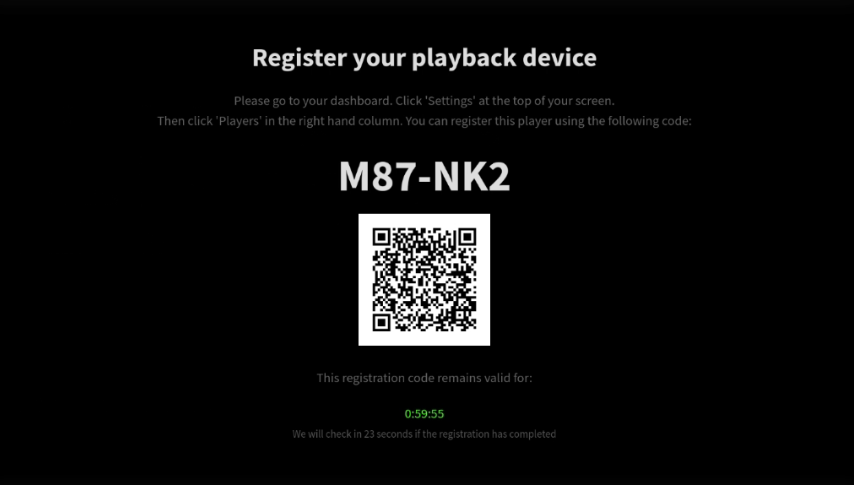

4. The Playr app will launch automatically, and if connected to the internet, the following screen will appear:






 5. Register the device



Open the Online Monitors Anywhere Dashboard:


Go to Settings > Players

Enter the code in the 'Registration Code' field:












Once completed, click 'Register' to finalize the process.

After a few seconds, your channel will begin loading and will start playing once all content has buffered.
